Holosun - HS503GU Red Dot Sight - Multi Reticle

Holosun - HS503GU Red Dot Sight - Multi Reticle - Red Dots
Red Dots - Holosun - HS503GU Red Dot Sight - Multi Reticle
Holosun - HS503GU Red Dot Sight - Multi Reticle - Red Dots - Shooting
Shooting - Holosun - HS503GU Red Dot Sight - Multi Reticle - Red Dots
Holosun - HS503GU Red Dot Sight - Multi Reticle - Red Dots
Red Dots - Holosun - HS503GU Red Dot Sight - Multi Reticle
Holosun - HS503GU Red Dot Sight - Multi Reticle - Red Dots - Shooting
Product code: 18569
Manufacturer: Holosun
368,75 EUR
incl. VAT / pc
After sending you will gain 1475 pts.
Free delivery from 74,75 EUR
Replacement or return by 30 days
Holosun's Micro Red Dot series consists of small, lightweight sights, making it ideal for shooting sports. HS503GU model has a choice of 2 target points, a 2 MOA dot with a 65 MOA circle dot reticle with the option of switching to a 2 MOA dot only.

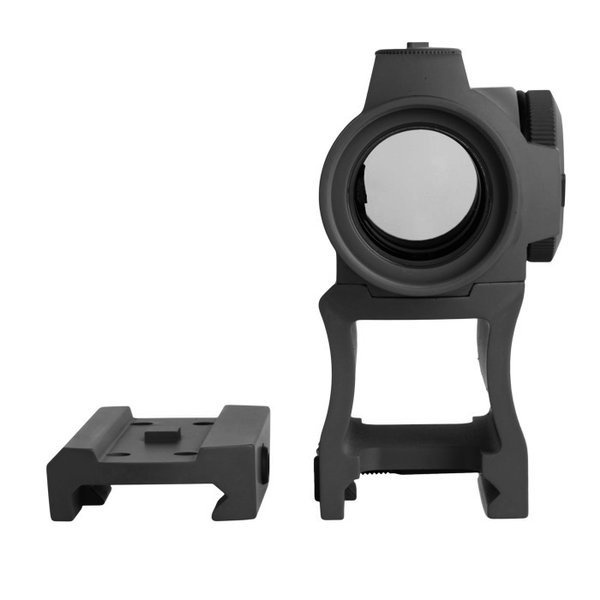

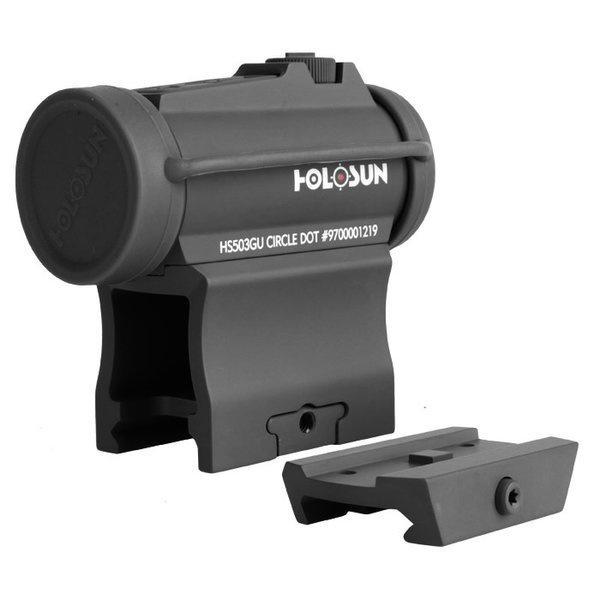

This red dot has two mounts included in the set: low and high 1/3 Co-Witness. Version with battery inserted in right side battery compartment.

The electronic control system in combination with an efficient LED diode make the device characterized by high efficiency and stable, long-term operation. The system is powered by a single 2032 battery with a theoretical operating time of 50,000 h at the sixth point intensity setting.

The red dot is equipped with a system of advanced, multi-layer coated lenses. This solution allowed excellent visible light transmission. The image visible through the lens is clear, bright and parallax free.

The Multi Reticle System used in the model allows you to choose the shape of the reticle depending on the situation or type of weapon on which it is mounted. Here we have a classic 2 MOA dot, useful for smoothbore guns 65 MOA circle, or a combination of them. Basing the display of all points on one diode means that when changing it is not necessary to zero the device again.

The model is also equipped with the Shake Awake system that facilitates battery saving. After 10 minutes of inactivity, the device goes into sleep mode. To wake them up, just move the weapon on which it was mounted.

Advantages of the HS503GU:
1. Parallax-free optical system with unlimited eye relief.
2. The streamlined design, which limits the field of observation very little, can instantly acquire a target and gain situational awareness while aiming with both eyes open.
3. Advanced LED technology with low power consumption for up to 50,000 hours of operation with CR2032 battery.
4. Durable lenses with advanced multi-layer coatings for full spectrum permeability and high transparency.
5. Solar panel supplying the red dot, the battery supplies the LED only when the solar panel is insufficiently exposed. Thanks to this, the collimator can operate in all lighting conditions.

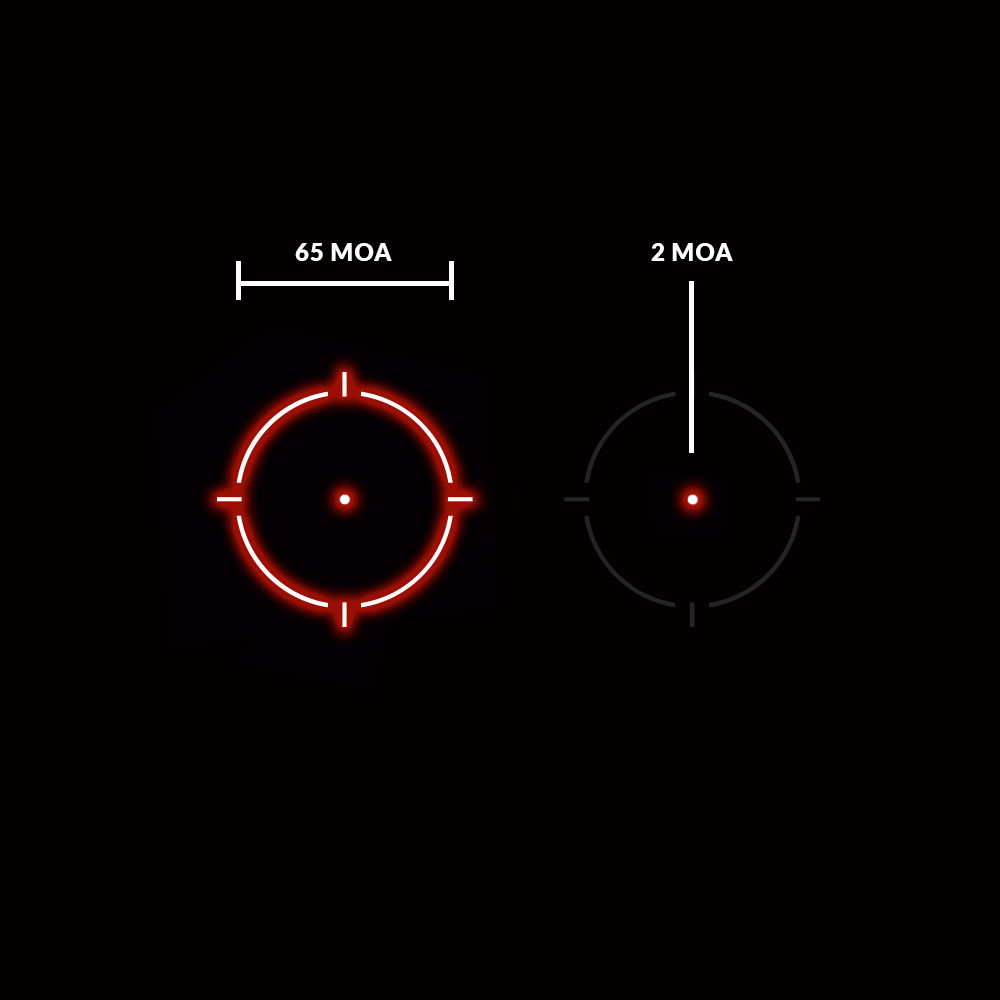

6. Red dot reticle 2 MOA with 65 MOA circle and four positioning points - the circle can be switched off as required. The diameter of the circle is about 170 cm per 100 m (5'5'/100y).
7. Eye safe LED reticle pattern.
8. A motion sensor that wakes up the device from sleep mode and that starts 10 minutes after the last movement has been detected. Possibility of manual setting of the automatic switch-off time.
9. Adjusting knobs are partly built into the body and secured with protective caps, so they are well protected against weather and mechanical damage .
10. Durable, shock-resistant aluminum T6061-T6 construction using CNC technology.
11. Waterproof housing to IP67 standard.
12. Two assemblies included: 1/3 Co-witness (installed) and low.
13. Fits Picatinny or Weaver rails.
14. The battery is mounted in a removable compartment located on the right side of the housing.

Technical data:
- Window size: 20 mm
- Reticle: dot 2 MOA, circle 65 MOA
- Light source: LED
- Eye relief: unlimited
- Adjustment: 1/2 MOA / one click, in the range of 50 MOA
- Parallax: ⩽±1 MOA
- Coatings: multilayer
- Magnification: 1X
- Power supply: CR2032 battery
- Battery life: up to 50,000 Hours
- Automatic switch-off: after 10 min
- Brightness setting: 10 Daylight + 2 NV Compatible
- Housing material: aluminum T6061-T6
- Surface finish: MAO
- Housing color: black
- Low-profile rubberized buttons on the right side of the housing
- Adjusting screws covered with protective caps
- Mounting rail: Picatinny / Weaver
- Waterproof construction (IP67)
- Shock Resistance: up to 1000 G
- Operating temperature range: -30℃ to 60℃
- Storage temperature range: -40°C to 70°C
- Dimensions: 71 x 36 x 69 mm (with high mount)
- Weight: 150 g (with high mount)

. Set includes:
- HS503GU FDE red dot with 1/3 Co-Witness high mount
- CR2032 battery
- Low mount
- Rubber lens protectors
- Aiming Dot Adjustment Tool
- 2x Torx key
- Microfiber cloth

The whole is packed in an aesthetic and durable plastic box.

Holosun Limited Lifetime Warranty


The lens in my red dot sight is skewed, should it be like that?
Yes, in the case of enclosed red dot sights with the emitter at 4 o'clock, the lens must be tilted to properly reflect light towards the user's eyes.
